Retainer Rings
Retainer Rings are generally used with internal halyard flagpoles by providing
a means of keeping the bottom of the flag close to the pole and is an
aid to raise and lower the flag. Retainer rings can also be used on large
multi grommet flags on both external and internal halyard flagpoles as
a means to keep the flags close to the pole.
| Beaded Retainer Ring | ||
| Item # | Size | Price |
| 834580 | Pole Dia. 3" - 13x1" balls | $62 |
| 834590 | Pole Dia. 3.5" - 17x1" balls | 69 |
| 834595 | Pole Dia. 4" - 20x1" balls | 76 |
| 834600 | Pole Dia. 5" - 23x1" balls | 82 |
| 834700 | Pole Dia. 6" - 27x1" balls | 90 |
| 834800 | Pole Dia. 7" - 30x1" balls | 98 |
| 834900 | Pole Dia. 8" - 34x1" balls | 106 |
| 835100 | Pole Dia. 10" - 42x1" balls | 122 |
| 835150 | Pole Dia. 10" - 11x2" balls | 129 |
| 835200 | Pole Dia. 12" - 46x1" balls | 142 |
| 835250 | Pole Dia. 12" - 12x2" balls | 212 |
Constructed of 1" diameter balls strung onto a
1/8" stainless steel aircraft cable with a stainless steel thimble
attached to each end with two aluminum crimps & a stainless steel bow shackle.
Canvas cover & plastic protector with galvanized
chain, 2 lbs. Complete with stainless steel bow shackle.
| Sock & Chain Assembly | ||
| Item # | Size | |
| 835600 | Sock & Chain 2.5 lbs (5" pole) | $108.00 |

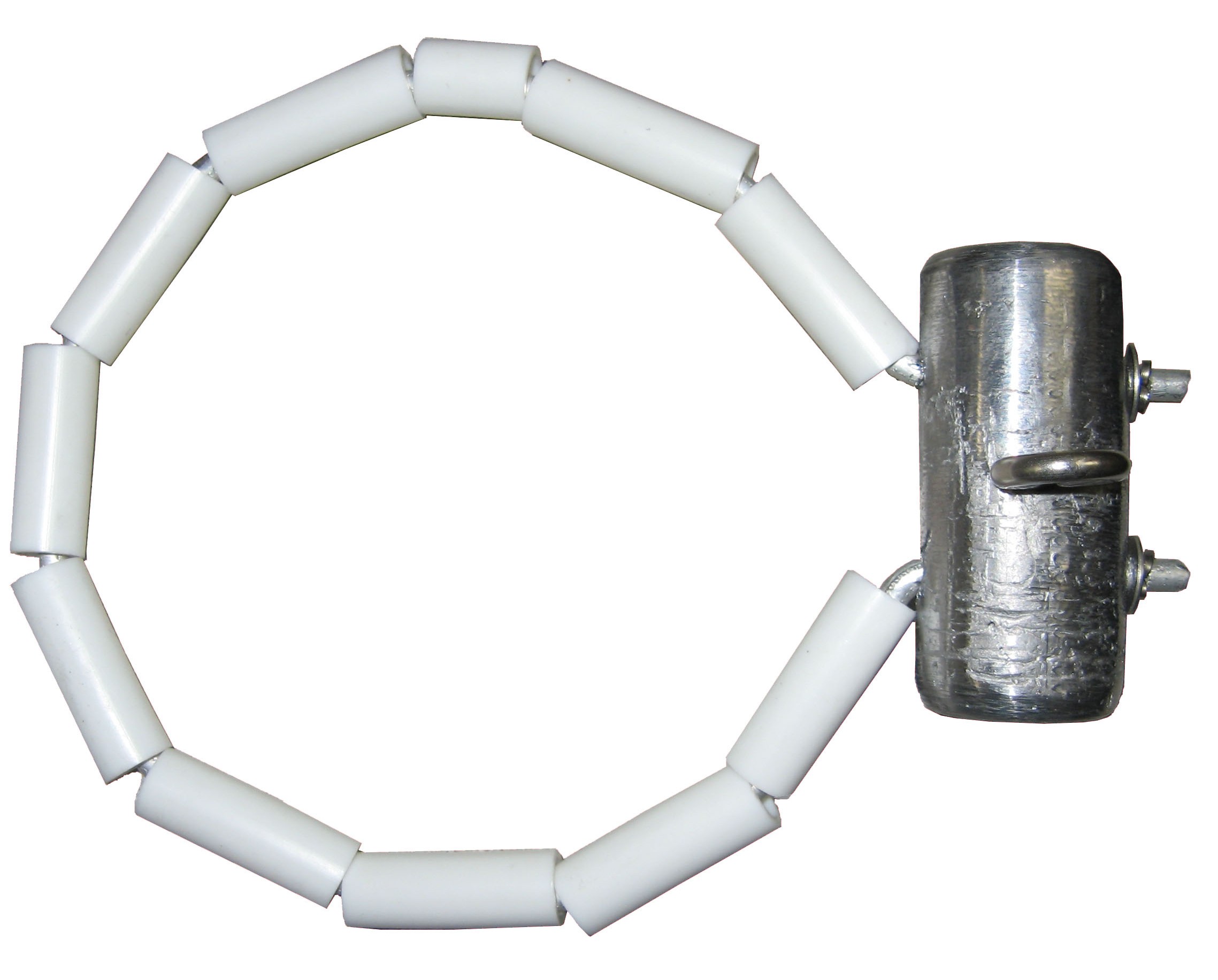

Ring assemblies are comprised of a machined lead weight
(3 lbs) attached to a .250" aluminum retainer ring which goes around
the flagpole. To aid in reducing noise caused by the ring clanging against
the flagpole, the ring assembly also features platic pvc buffer rings
covering the retainer ring. A 1/4" stainless steel eyebolt goes through
the lead weight. The flag cable attaches to the eyebolt.a
| Ring & Lead Weight Assembly | ||
| Item # | Size | Price |
| 835350 | Ring & lead weight 3 lbs (5" pole) | $298.00 |

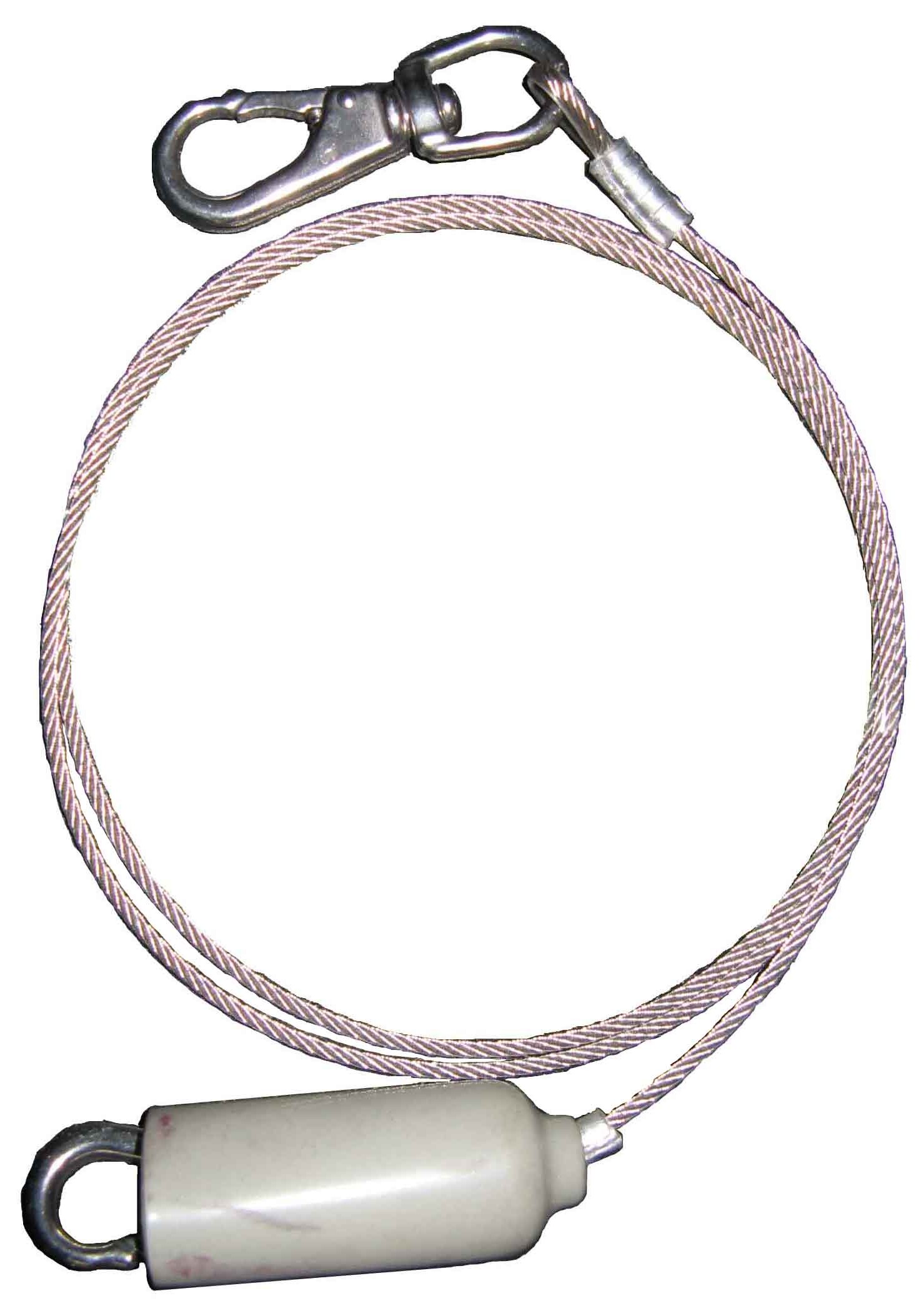

The flag cable assembly is constructed of 1/8"
stainless steel cable with a stainless steel thimble, aluminum sleeve,
brass or stainless steel snap attached at each end, and a vinyl snap cover
to help reduce noise. This flag cable arrangement provides the method
of attaching the flag to the main cable.
For each additional flag, add a flag cable to the flagpole.
For each additional flag, add a flag cable to the flagpole.
Counter Weights are plasticoated to help reduce noise
and to protect your flagpole.
The weight is attached to the bottom of the flag cable, a 6mm bow shackle is used to attach the retainer ring to the weight.
The weight is attached to the bottom of the flag cable, a 6mm bow shackle is used to attach the retainer ring to the weight.
| Flag Cable Assemblies | ||
| Item # | Size | Price |
| 831600 | 36" with S/S snaps & cover | $37 |
| 831500 | Larger flag cables add per foot | 1 |
| Counter Weights | ||
| Item # | Size | Price |
| 834200 | Counter Weight 3 lbs (5" pole) | $82 |
| 834300 | Counter Weight 6 lbs (7"-8" pole) | 108 |
| 834400 | Counter Weight 10 lbs (10"-12" pole) | 150 |
